Probabilistic Interpolation: Regression Kriging

Big Idea

With kriging we used limited spatial data to make predictions (interpolation) over larger areas. Regression kriging is going to use the same theory but incorporate ancillary data to make better predictions.

Reading

Meng et al. (2013) provide a (mostly) readable description of regression kriging and compare it to the kind of interpolation approaches we’ve looked at already. Give it a heavy skim.

Meng et al. (2013) Assessment of regression kriging for spatial interpolation – comparisons of seven GIS interpolation methods. Cartography and Geographic Information Science, 40:1, 28-39, doi: 10.1080/15230406.2013.762138.

Packages

The gstat package is your friend. But we will need some of our recent collaborators as well including terra and `tidyterra’.

Code

library(tidyverse)
library(sf)
library(terra)
library(tidyterra)
library(gstat)

Overview of RK

Regression kriging (RK) is a spatial interpolation technique (like IDW, thin-plate splines, and kriging) that allows for estimation of a variable across a spatial domain. Like the name suggests, RK combines regression and kriging. It is a probabilistic method and produces a variance surface like kriging.

RK uses a regression of the dependent variable ($y$) on predictor variables ($x_1$,$x_2$, etc.) with standard kriging of the errors on the regression. By fitting a variogram to the residuals of the model, predictors influence the kriging weights (recall $\lambda$ from the kriging module?). The advantage of RK over either kriging or regression is that it combines the use of spatial structure for prediction (as kriging does) with the addition of ancillary variables (like regression does). In other words, RK exploits the spatial correlation between variables for making predictions.

RK is used more and more commonly as cheap and powerful covariates can be derived from remote sensing and GIS data. I’ll give some examples in the video.

Prediction Review: OLS Regression with New Data

This is likely serious review for all of you so roll your eyes as needed. But I just want to be sure we are on the same page. I want to make sure you are hip to the idea of passing new data (e.g., into a predict function) for extending a model (e.g., lm) to new data. We’ve done this already a few times, but it never hurts to get it again.

Here we create a data.frame called originalDat with three variables: x1 and x2 are n draws from a normal distribution ($N(0,1)$) and y is a function of x1and x2 following a linear model with coefficients b0, b1, and b2 plus some more noise (epsilon) ($N(0,2)$).

Code

n <- 50
b0 <- 4
b1 <- 0.6
b2 <- 3
originalDat <- data.frame(x1=rnorm(n), x2=rnorm(n), epsilon = rnorm(n,sd = 2))
originalDat$y <- b0 + b1 * originalDat$x1 + b2 * originalDat$x2 + originalDat$epsilon

We then fit a linear model (OLS) with lm:

Code

lm1 <- lm(y~x1 + x2,data = originalDat)
summary(lm1)


Call:
lm(formula = y ~ x1 + x2, data = originalDat)

Residuals:
    Min      1Q  Median      3Q     Max
-3.9446 -1.4464 -0.3522  1.2004  4.5087

Coefficients:
            Estimate Std. Error t value Pr(>|t|)
(Intercept)   3.5699     0.2841  12.567  < 2e-16 ***
x1            0.4794     0.2650   1.809   0.0768 .
x2            2.8109     0.3556   7.904 3.55e-10 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 1.968 on 47 degrees of freedom
Multiple R-squared:  0.5788,    Adjusted R-squared:  0.5609
F-statistic: 32.29 on 2 and 47 DF,  p-value: 1.497e-09

OK. We have one definitely helpful predictor, and one borderline predictor. Now let’s say we want to extend that model to predict a new data set. The object lm1 is class lm and most every model class has a predict function, or a newdata argument to the original function, that allows you feed it new data. So let’s imagine we have a new data set with x1 and x2 but no y.

Code

newDat <- data.frame(x1=rnorm(n),x2=rnorm(n))
head(newDat)

          x1         x2
1 -0.9107046  0.1053673
2 -1.9548906 -0.2345276
3 -0.5561183  0.1375432
4 -0.7254766  0.3132995
5 -0.5021313  1.1485350
6  0.1749991  0.8071396

We can use predict.lm (we just need to type predict since the object we are feeding is class lm, R knows to use predict.lm) to model new estimates of y by pointing to newDat using the newdata argument. Note that I’m sticking the predicted values right into a new column yhat. Why the hat? Because it’s an estimate.

Code

newDat$yhat <- predict(object = lm1,newdata = newDat)
head(newDat)

          x1         x2     yhat
1 -0.9107046  0.1053673 3.429497
2 -1.9548906 -0.2345276 1.973452
3 -0.5561183  0.1375432 3.689944
4 -0.7254766  0.3132995 4.102786
5 -0.5021313  1.1485350 6.557656
6  0.1749991  0.8071396 5.922660

If we call predict without new data, the fits from the original model are returned. In the above predict(lm1), fitted(lm1), and lm1$fitted.values all do the same thing.

I know that most of you are familiar with this. I just wanted to spell it all out.

Back to the Netherlands

Let’s look at a real-world example of RK using, you guessed it, the Meuse River data. I’m pretty sick of these data but they are familiar to us. We’ve used the data in meuse.all quite a bit and we’ve used meuse.grid as an empty grid to interpolate into. But meuse.grid has other data in it that we can use in a regression kriging approach.

The Data

Code

data(meuse.all)
str(meuse.all)

'data.frame':   164 obs. of  17 variables:
 $ sample     : num  1 2 3 4 5 6 7 8 9 10 ...
 $ x          : num  181072 181025 181165 181298 181307 ...
 $ y          : num  333611 333558 333537 333484 333330 ...
 $ cadmium    : num  11.7 8.6 6.5 2.6 2.8 3 3.2 2.8 2.4 1.6 ...
 $ copper     : num  85 81 68 81 48 61 31 29 37 24 ...
 $ lead       : num  299 277 199 116 117 137 132 150 133 80 ...
 $ zinc       : num  1022 1141 640 257 269 ...
 $ elev       : num  7.91 6.98 7.8 7.66 7.48 ...
 $ dist.m     : num  50 30 150 270 380 470 240 120 240 420 ...
 $ om         : num  13.6 14 13 8 8.7 7.8 9.2 9.5 10.6 6.3 ...
 $ ffreq      : num  1 1 1 1 1 1 1 1 1 1 ...
 $ soil       : num  1 1 1 2 2 2 2 1 1 2 ...
 $ lime       : num  1 1 1 0 0 0 0 0 0 0 ...
 $ landuse    : Factor w/ 16 levels "Aa","Ab","Ag",..: 4 4 4 11 4 11 4 2 2 16 ...
 $ in.pit     : logi  FALSE FALSE FALSE FALSE FALSE FALSE ...
 $ in.meuse155: logi  TRUE TRUE TRUE TRUE TRUE TRUE ...
 $ in.BMcD    : logi  FALSE FALSE FALSE FALSE FALSE FALSE ...

We know all too well by now that meuse.all is a data.frame with 164 point measurements of 17 variables.

Code

meuse.grid <- readRDS("data/meuse.grid.Rds")
str(meuse.grid)

'data.frame':   3103 obs. of  7 variables:
 $ x     : num  181180 181140 181180 181220 181100 ...
 $ y     : num  333740 333700 333700 333700 333660 ...
 $ part.a: num  1 1 1 1 1 1 1 1 1 1 ...
 $ part.b: num  0 0 0 0 0 0 0 0 0 0 ...
 $ dist  : num  0 0 0.0122 0.0435 0 ...
 $ soil  : Factor w/ 3 levels "1","2","3": 1 1 1 1 1 1 1 1 1 1 ...
 $ ffreq : Factor w/ 3 levels "1","2","3": 1 1 1 1 1 1 1 1 1 1 ...

And, we know all too well by now that meuse.grid is a data.frame with 3103 points on a grid and 7 variables.

However, we have three variables from meuse.all that overlap in meuse.grid and we haven’t used those much (or at all) in this class yet. Thus, if we create a model from meuse.all that includes dist, soil, or ffreq as predictors we could predict over meuse.grid without doing IDW or kriging. Those variables held in common between meuse.all and meuse.grid are, by the way, the distance to the river (normalized from 0 to 1), soil type (three classes), and the flooding frequency class (also three classes). See ?meuse.all for details on the variables.

Don’t worry, we will skip cadmium, zinc, and lead and work with modeling om which is percent organic matter in the soil. We will model om as a function of dist and soil and predict it over the entire study site. We will do this naively with ordinary least squares regression (OLS) and then again with RK.

Make data as `sf` and clean it up

Fist we will make both data sets in sf objects.

Code

meusePoints_sf <- st_as_sf(meuse.all,coords = c("x","y"), crs=28992)
meuseGrid_sf <- st_as_sf(meuse.grid,coords = c("x","y"), crs=28992)
meusePoints_sf

Simple feature collection with 164 features and 15 fields
Geometry type: POINT
Dimension:     XY
Bounding box:  xmin: 178605 ymin: 329714 xmax: 181390 ymax: 333611
Projected CRS: Amersfoort / RD New
First 10 features:
   sample cadmium copper lead zinc  elev dist.m   om ffreq soil lime landuse
1       1    11.7     85  299 1022 7.909     50 13.6     1    1    1      Ah
2       2     8.6     81  277 1141 6.983     30 14.0     1    1    1      Ah
3       3     6.5     68  199  640 7.800    150 13.0     1    1    1      Ah
4       4     2.6     81  116  257 7.655    270  8.0     1    2    0      Ga
5       5     2.8     48  117  269 7.480    380  8.7     1    2    0      Ah
6       6     3.0     61  137  281 7.791    470  7.8     1    2    0      Ga
7       7     3.2     31  132  346 8.217    240  9.2     1    2    0      Ah
8       8     2.8     29  150  406 8.490    120  9.5     1    1    0      Ab
9       9     2.4     37  133  347 8.668    240 10.6     1    1    0      Ab
10     10     1.6     24   80  183 9.049    420  6.3     1    2    0       W
   in.pit in.meuse155 in.BMcD              geometry
1   FALSE        TRUE   FALSE POINT (181072 333611)
2   FALSE        TRUE   FALSE POINT (181025 333558)
3   FALSE        TRUE   FALSE POINT (181165 333537)
4   FALSE        TRUE   FALSE POINT (181298 333484)
5   FALSE        TRUE   FALSE POINT (181307 333330)
6   FALSE        TRUE   FALSE POINT (181390 333260)
7   FALSE        TRUE   FALSE POINT (181165 333370)
8   FALSE        TRUE   FALSE POINT (181027 333363)
9   FALSE        TRUE   FALSE POINT (181060 333231)
10  FALSE        TRUE   FALSE POINT (181232 333168)

Code

meuseGrid_sf

Simple feature collection with 3103 features and 5 fields
Geometry type: POINT
Dimension:     XY
Bounding box:  xmin: 178460 ymin: 329620 xmax: 181540 ymax: 333740
Projected CRS: Amersfoort / RD New
First 10 features:
   part.a part.b       dist soil ffreq              geometry
1       1      0 0.00000000    1     1 POINT (181180 333740)
2       1      0 0.00000000    1     1 POINT (181140 333700)
3       1      0 0.01222430    1     1 POINT (181180 333700)
4       1      0 0.04346780    1     1 POINT (181220 333700)
5       1      0 0.00000000    1     1 POINT (181100 333660)
6       1      0 0.01222430    1     1 POINT (181140 333660)
7       1      0 0.03733950    1     1 POINT (181180 333660)
8       1      0 0.05936620    1     1 POINT (181220 333660)
9       1      0 0.00135803    1     1 POINT (181060 333620)
10      1      0 0.01222430    1     1 POINT (181100 333620)

One thing to note here is that the dist.m column in meusePoints_sf is the distance to the river in meters while meuseGrid_sf has distance to the river in relative units (scaled zero to one). To make life easier we will add the relative distances to the point data unsing the dist values from meuseGrid_sf.

Code

# get the relative distance from meuseGrid_sf and add it to meusePoints_sf
meuseGrid_dist_sf <- meuseGrid_sf %>% select(dist)
# join the two objects by the nearest point
meusePoints_sf <- st_join(meusePoints_sf,meuseGrid_dist_sf, join = st_nearest_feature)
# note that we now have relative dist for each point now in the column `dist`
meusePoints_sf

Simple feature collection with 164 features and 16 fields
Geometry type: POINT
Dimension:     XY
Bounding box:  xmin: 178605 ymin: 329714 xmax: 181390 ymax: 333611
Projected CRS: Amersfoort / RD New
First 10 features:
   sample cadmium copper lead zinc  elev dist.m   om ffreq soil lime landuse
1       1    11.7     85  299 1022 7.909     50 13.6     1    1    1      Ah
2       2     8.6     81  277 1141 6.983     30 14.0     1    1    1      Ah
3       3     6.5     68  199  640 7.800    150 13.0     1    1    1      Ah
4       4     2.6     81  116  257 7.655    270  8.0     1    2    0      Ga
5       5     2.8     48  117  269 7.480    380  8.7     1    2    0      Ah
6       6     3.0     61  137  281 7.791    470  7.8     1    2    0      Ga
7       7     3.2     31  132  346 8.217    240  9.2     1    2    0      Ah
8       8     2.8     29  150  406 8.490    120  9.5     1    1    0      Ab
9       9     2.4     37  133  347 8.668    240 10.6     1    1    0      Ab
10     10     1.6     24   80  183 9.049    420  6.3     1    2    0       W
   in.pit in.meuse155 in.BMcD       dist              geometry
1   FALSE        TRUE   FALSE 0.00135803 POINT (181072 333611)
2   FALSE        TRUE   FALSE 0.01222430 POINT (181025 333558)
3   FALSE        TRUE   FALSE 0.10302900 POINT (181165 333537)
4   FALSE        TRUE   FALSE 0.19009400 POINT (181298 333484)
5   FALSE        TRUE   FALSE 0.27709000 POINT (181307 333330)
6   FALSE        TRUE   FALSE 0.36406700 POINT (181390 333260)
7   FALSE        TRUE   FALSE 0.19009400 POINT (181165 333370)
8   FALSE        TRUE   FALSE 0.09215160 POINT (181027 333363)
9   FALSE        TRUE   FALSE 0.18461400 POINT (181060 333231)
10  FALSE        TRUE   FALSE 0.30970200 POINT (181232 333168)

We will go a step further and use the square root of the distance to the river as a predictor. This just helps us get a little more leverage on very short distances by stretching out the scale.

Code

meusePoints_sf <- meusePoints_sf %>% mutate(sqrt_dist = sqrt(dist))
meuseGrid_sf <- meuseGrid_sf %>% mutate(sqrt_dist = sqrt(dist))

Next, the column om in meusePoints_sf has two missing data points (NA) in it. I’m going to toss those rows to make things easier. Note the new number of rows in meusePoints_sf after you run this.

Code

meusePoints_sf <- meusePoints_sf %>% drop_na(om)

And finally, we are going to be using the soil type as a predictor. That is a categorical variable so we need to change it to be a factor.

Code

meusePoints_sf <- meusePoints_sf %>% mutate(soil = factor(soil))
meuseGrid_sf <- meuseGrid_sf %>% mutate(soil = factor(soil))

OLS

We will make a simple model of organic matter ($y$) as a function of the square root of the distance to the river ($x_1$) and soil type ($x_2$): $y=\beta_0 + \beta_1x_1+\beta_2x_2$. The parameters ($\beta_{0,1,2}$) will be estimated with OLS. Here is the OLS model:

Code

om_lm <- lm(om~sqrt_dist+soil, data=meusePoints_sf)
summary(om_lm)


Call:
lm(formula = om ~ sqrt_dist + soil, data = meusePoints_sf)

Residuals:
    Min      1Q  Median      3Q     Max
-6.8478 -1.4629 -0.1575  1.4344  7.3786

Coefficients:
            Estimate Std. Error t value Pr(>|t|)
(Intercept)  11.6894     0.4418  26.460  < 2e-16 ***
sqrt_dist    -8.9179     1.0902  -8.180 8.79e-14 ***
soil2        -1.7178     0.5047  -3.403 0.000843 ***
soil3         0.7120     0.8628   0.825 0.410449
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 2.473 on 158 degrees of freedom
Multiple R-squared:  0.4926,    Adjusted R-squared:  0.4829
F-statistic: 51.12 on 3 and 158 DF,  p-value: < 2.2e-16

Code

anova(om_lm)

Analysis of Variance Table

Response: om
           Df Sum Sq Mean Sq F value    Pr(>F)
sqrt_dist   1 833.08  833.08 136.197 < 2.2e-16 ***
soil        2 105.07   52.54   8.589 0.0002877 ***
Residuals 158 966.45    6.12
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

In our model, we see that both distance and soil types are good predictors of organic matter percent. Now, this might or might not be a good model. After you learn about the pitfalls of using OLS with spatial data you’ll be appalled that I’m running this model and not checking for spatial autocorrelation in the residuals or doing any other regression diagnostics. But suppress your horror for now. Because all I want to do here is show how I could (if I wanted to live in a state of ignorant bliss) predict this model across the landscape.

Code

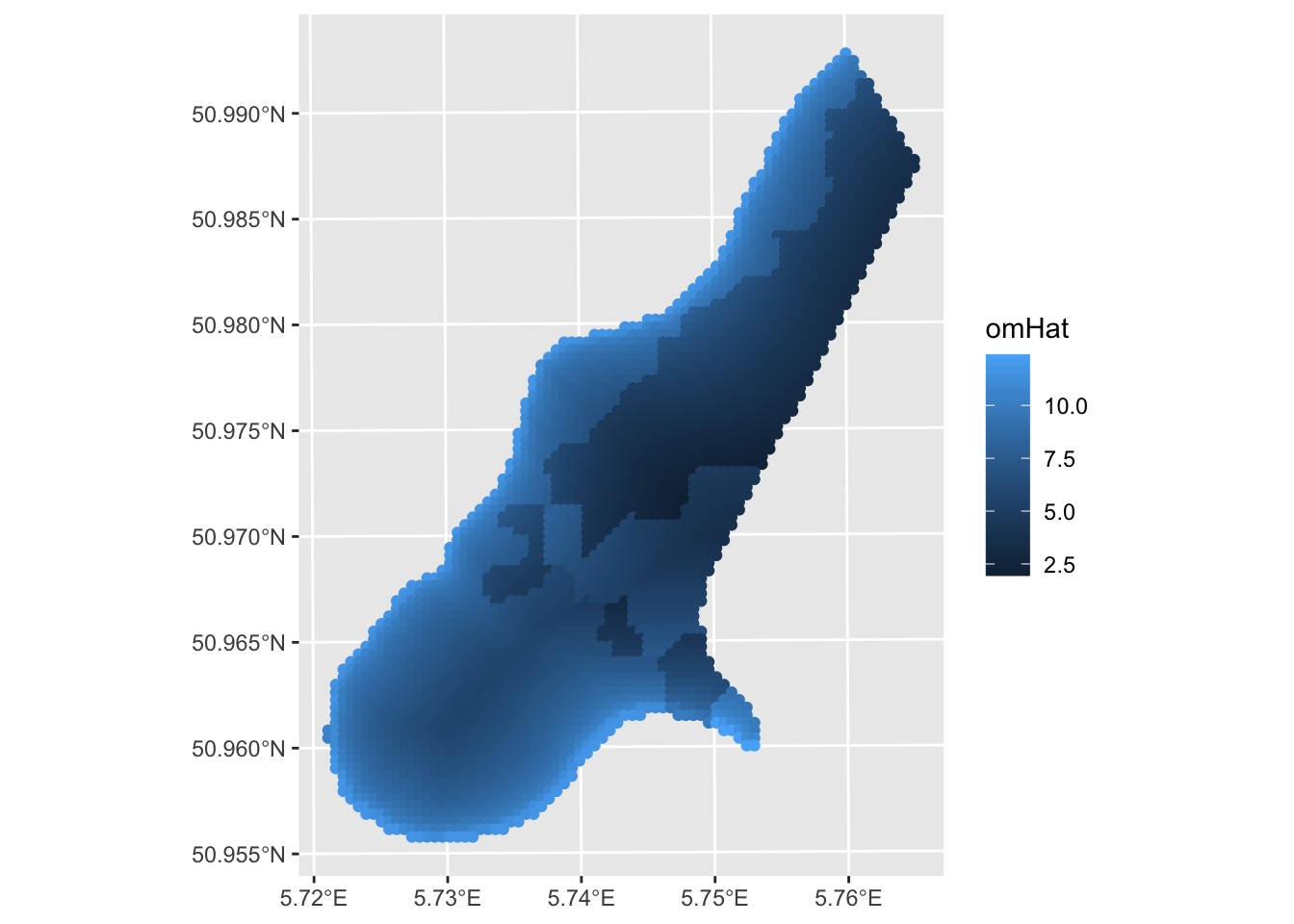

meuseGrid_sf$omHat <- predict(om_lm, newdata=meuseGrid_sf)

ggplot() + geom_sf(data = meuseGrid_sf,mapping = aes(color=omHat))

A few things. One this is a decent prediction. The model relatively skillful (but we should crossvalidate it) but the assumption about independence of the residuals is violated. E.g., Moran’s I on an eight-neighbor object is 0.23 which is significantly greater than zero. More on that in the next set of notes “GLS with Autocorrelated Residuals.” Oh, and that plot above is all points. We can make it a raster. Remember this handy function from the prior weeks that makes a sf point object into a SpatRaster?

Code

sf_2_rast <-function(sfObject,variable2get = 1){
  # coerce sf to a data.frame
  tmp <- sfObject[,variable2get] %>% st_drop_geometry()
  dfObject <- data.frame(st_coordinates(sfObject),
                         z=tmp)
  # coerce data.frame to SpatRaster
  rastObject <- rast(dfObject,crs=crs(sfObject))

  return(rastObject)
}

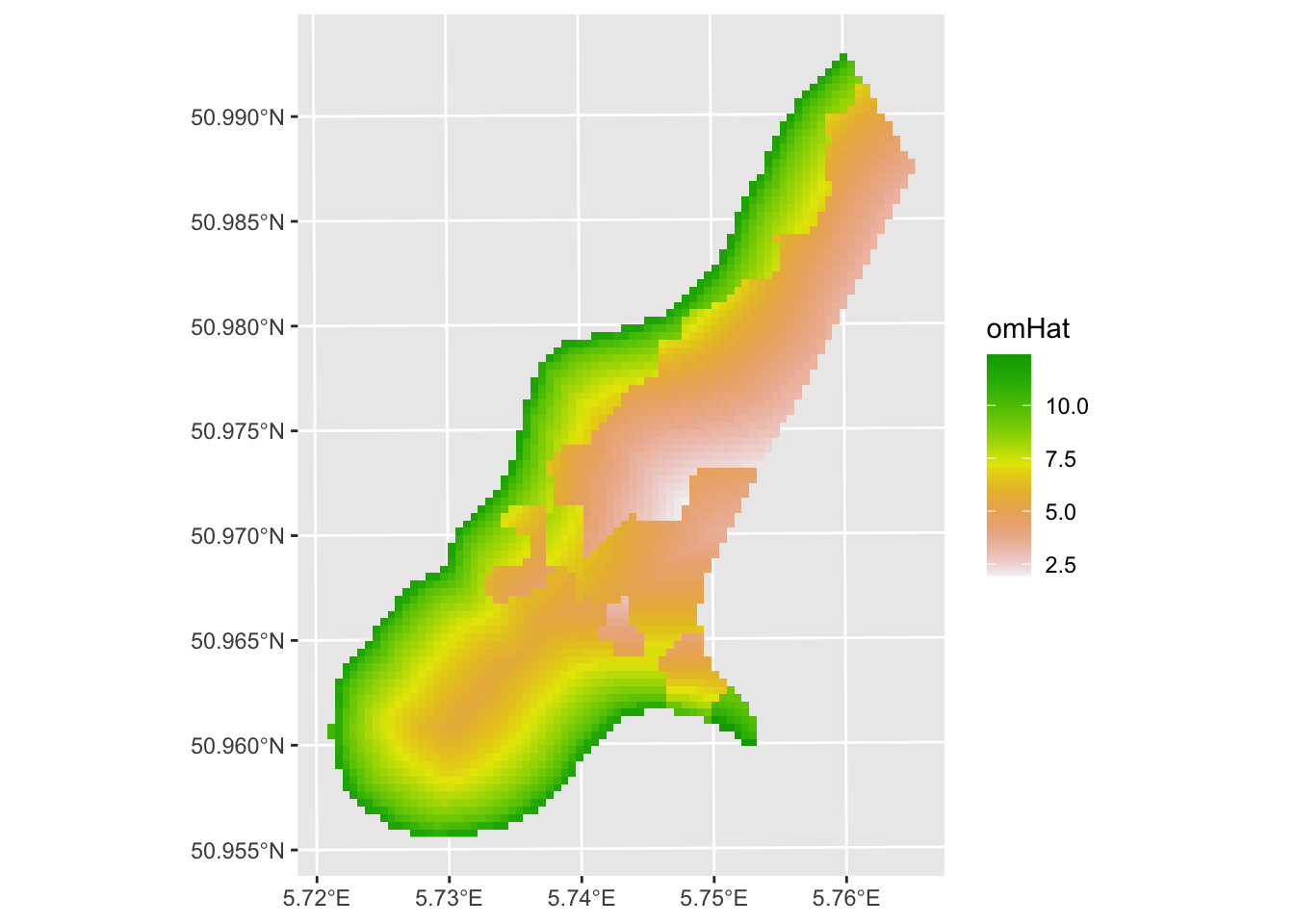

meuseGrid_rast <- sf_2_rast(meuseGrid_sf,variable2get = "omHat")
ggplot() + geom_spatraster(data = meuseGrid_rast,
                           mapping = aes(fill=omHat)) +
  scale_fill_terrain_c() +
  labs(fill = "omHat")

RK Application

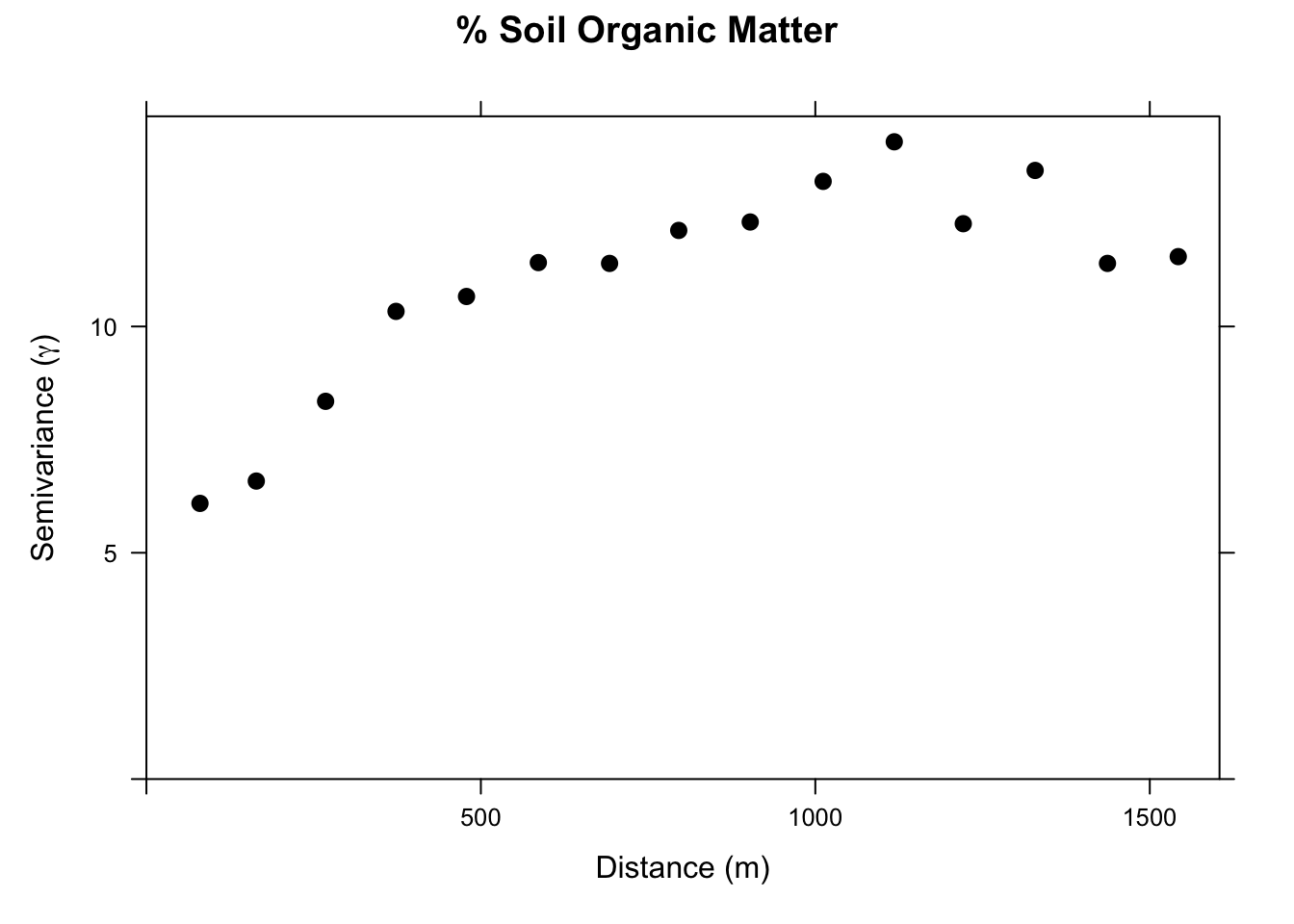

As I imagine you have anticipated, the silliest thing in the model above is that we threw out all of the awesome data we have on spatial structure. All the information on how pairs of samples relate to each other in terms of semivariance has been cast aside. And we know that organic matter is autocorrelated. E.g.,:

Code

omVar <- variogram(om~1, meusePoints_sf)
plot(omVar,pch=20,cex=1.5,col="black",
     ylab=expression("Semivariance ("*gamma*")"),
     xlab="Distance (m)", main = "% Soil Organic Matter")

With kriging, we would interpolate a surface based just on a theoretical variogram we would fit to those data. But we have all the data on distance and soil type that we used in the OLS model above. We can combine these approaches with RK.

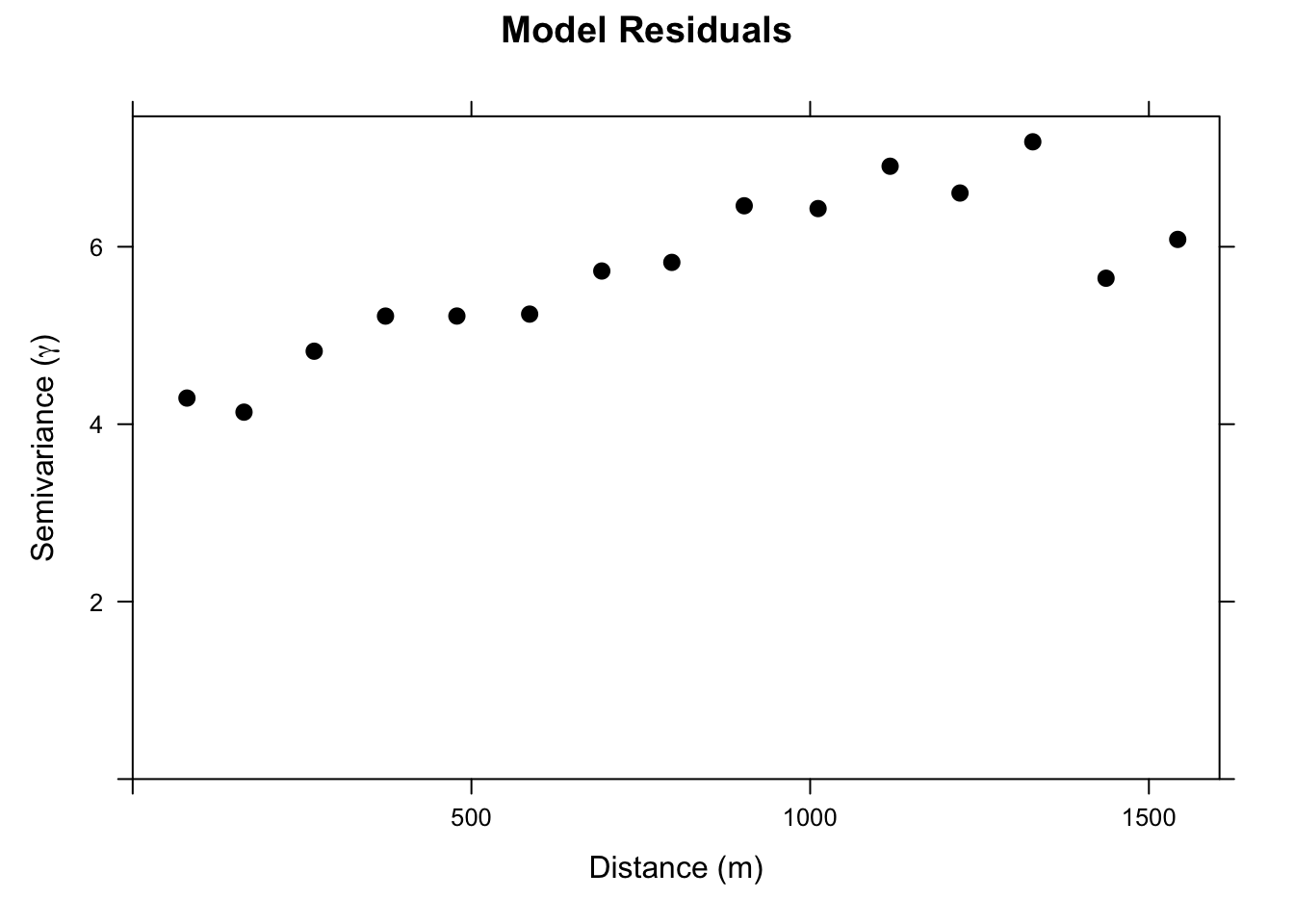

We will set up a gstat object with the linear regression model. When we plot the variogram we are seeing the residuals from that regression. They have some spatial structure. In OLS that is bad (violates independence). For RK, this is good! It means we can use that structure to improve the prediction.

Code

omGstat <- gstat(id = "omModel", formula = om ~ sqrt_dist + soil,
                 data = meusePoints_sf)
omGstat_obsVariogram <- variogram(omGstat)
plot(omGstat_obsVariogram,pch=20,cex=1.5,col="black",
     ylab=expression("Semivariance ("*gamma*")"),
     xlab="Distance (m)", main = "Model Residuals")

Ok. Let’s look at this. It’s not a severe variogram. But you can see that the semivariance goes from a nugget of about four to a sill of about six. I.e., there is spatial structure in this model that we can leverage and that should improve our predictions.

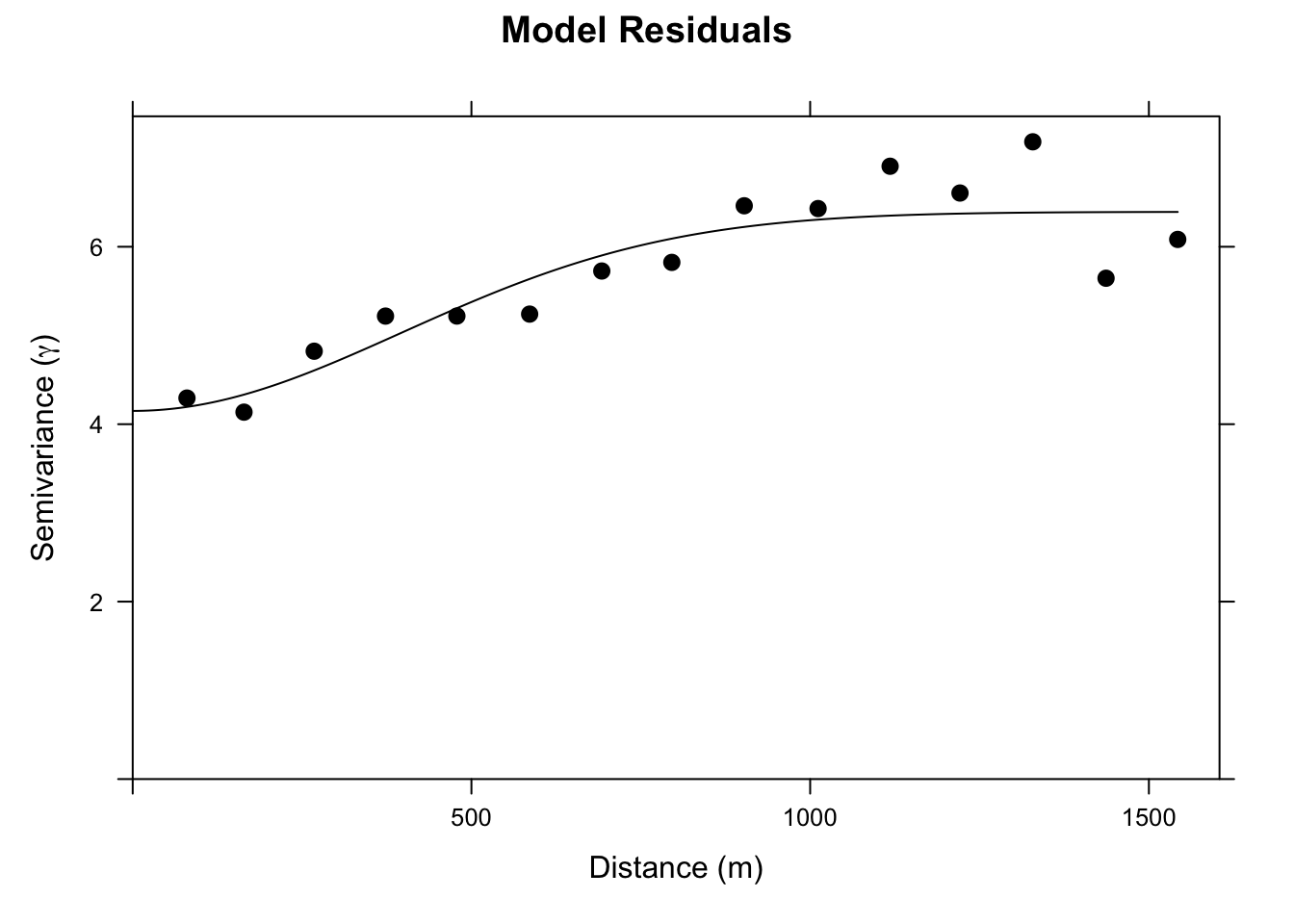

Thus, let’s fit a theoretical model to the omGstat_obsVariogram variogram. I’ll use a Gaussian model but you could make a good case here for an Exponential model.

Code

omGau_fittedVariogram <- fit.variogram(omGstat_obsVariogram, vgm(psill = 6, model = "Gau", range = 500, nugget = 4))

plot(omGstat_obsVariogram, omGau_fittedVariogram,pch=20,cex=1.5,col="black",
     ylab=expression("Semivariance ("*gamma*")"),
     xlab="Distance (m)", main = "Model Residuals")

Now we can update the gstat object with that variogram model. And use it to make a prediction.

Code

# Update the gstat object with the variogram:
omGstat_w_variogram <- gstat(omGstat, id="omModel", model=omGau_fittedVariogram)
# And predict
omHat_sf <- predict(omGstat_w_variogram, newdata = meuseGrid_sf)

[using universal kriging]

Code

omHat_sf

Simple feature collection with 3103 features and 2 fields
Geometry type: POINT
Dimension:     XY
Bounding box:  xmin: 178460 ymin: 329620 xmax: 181540 ymax: 333740
Projected CRS: Amersfoort / RD New
First 10 features:
   omModel.pred omModel.var              geometry
1      14.33925    5.370485 POINT (181180 333740)
2      14.38783    5.207100 POINT (181140 333700)
3      13.21201    5.157301 POINT (181180 333700)
4      12.16400    5.172975 POINT (181220 333700)
5      14.40786    5.072085 POINT (181100 333660)
6      13.24575    5.008216 POINT (181140 333660)
7      12.37960    5.012550 POINT (181180 333660)
8      11.85536    5.056316 POINT (181220 333660)
9      13.99688    4.937390 POINT (181060 333620)
10     13.24907    4.889661 POINT (181100 333620)

We have made a new object omHat_sf that has the predictions and the variance from the RK. It’s an sf object (because meuseGridSF is also sf). Let’s make them into SpatRasers to make the plots prettier.

Code

omHat_rast <- sf_2_rast(omHat_sf,variable2get = "omModel.pred")
omHat_rast

class       : SpatRaster
size        : 104, 78, 1  (nrow, ncol, nlyr)
resolution  : 40, 40  (x, y)
extent      : 178440, 181560, 329600, 333760  (xmin, xmax, ymin, ymax)
coord. ref. : Amersfoort / RD New (EPSG:28992)
source(s)   : memory
name        : omModel.pred
min value   :     1.891323
max value   :    14.407855

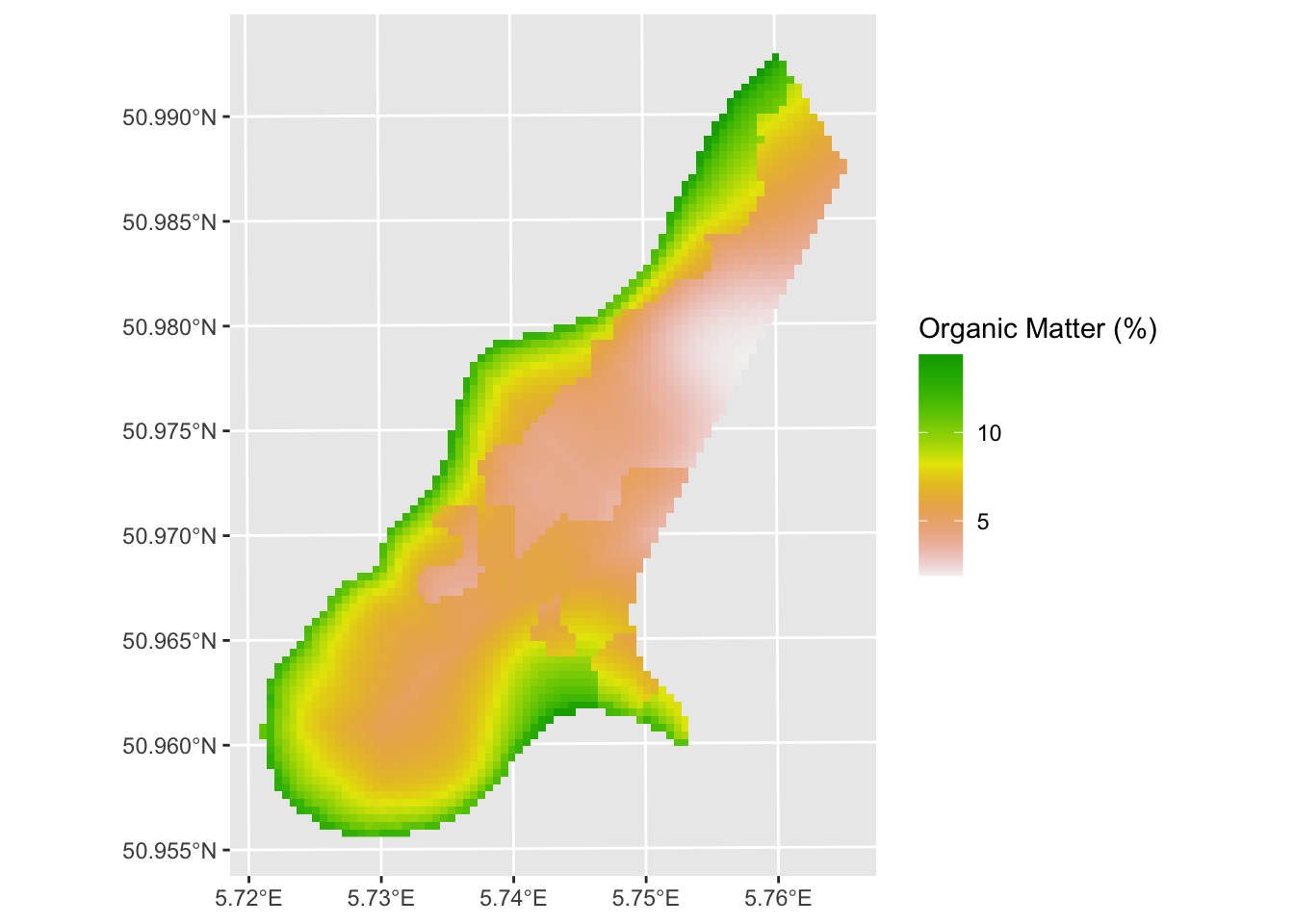

And plot:

Code

ggplot() +
  geom_spatraster(data = omHat_rast,
                           mapping = aes(fill=omModel.pred)) +
  scale_fill_terrain_c() +
  labs(fill = "Organic Matter (%)")

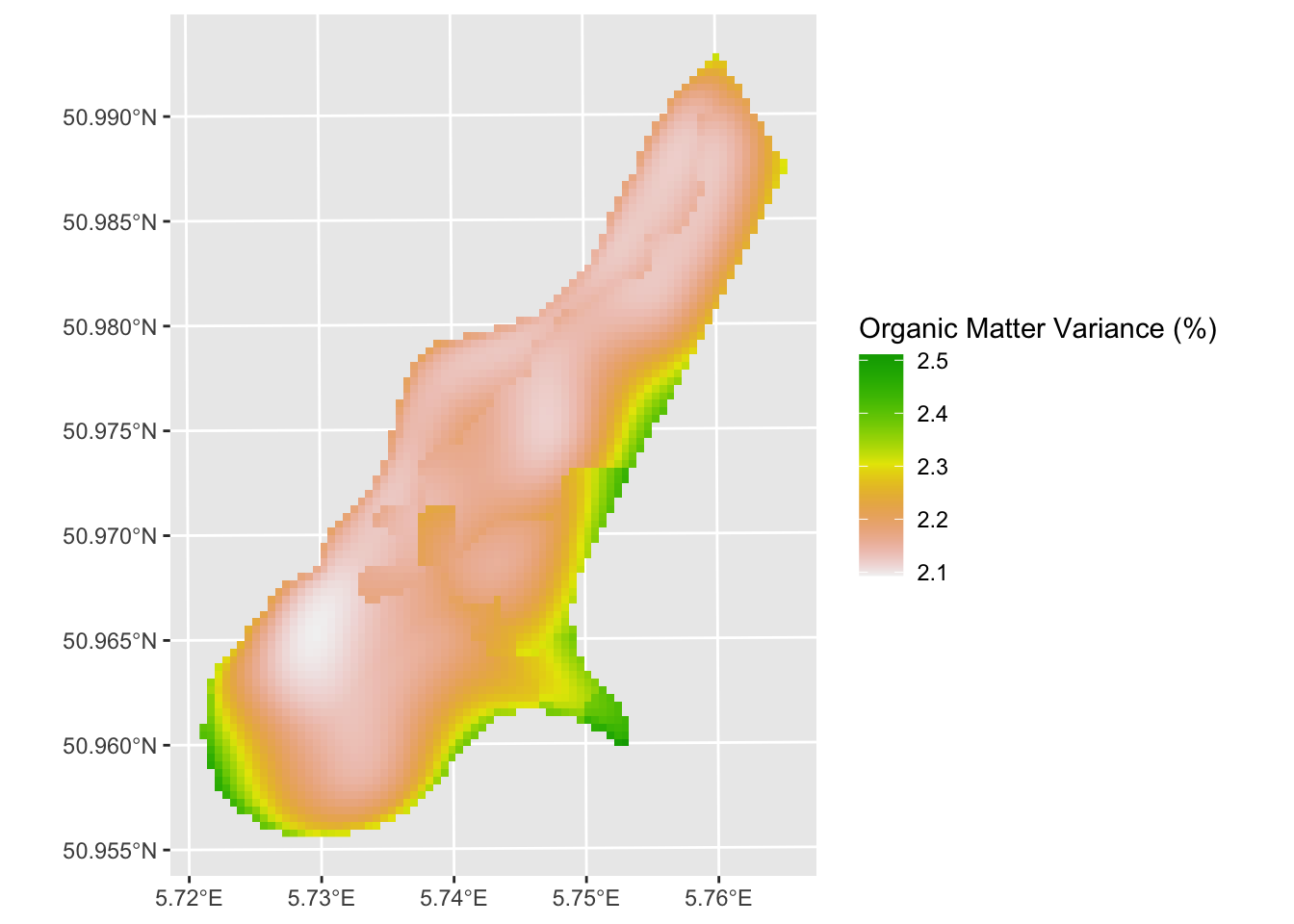

And variance around the predictions:

Code

omHatVar_rast <- sf_2_rast(omHat_sf,variable2get = "omModel.var")
# take the square root of variance to create standard deviation (units match then)
omHatVar_rast <- omHatVar_rast %>% mutate(omModel.var.sqrt = sqrt(omModel.var))
ggplot() + geom_spatraster(data = omHatVar_rast,
                           mapping = aes(fill=omModel.var.sqrt)) +
  scale_fill_terrain_c() +
  labs(fill = "Organic Matter Variance (%)")

The RK approach looks quite a bit different than the OLS prediction. Now our job is to look at the differences carefully and assess skill.

Your Work

None. This is kind of an add on to introduce you to RK. But you should be able to apply by following the workflow above. I suggest taking some time to figure out how to use gstat.cv and perform k-fold cross validation on the omGstat_w_variogram object and object with just the linear model (omGstat). Compare the skill of a k-fold cross validated OLS model and the k-fold cross validated RK model. Use R$^2$ and RMSE as your measures of skill. Did the RK approach improve the predictions?

Big Idea

Reading

Packages

Overview of RK

Prediction Review: OLS Regression with New Data

Back to the Netherlands

The Data

Make data as sf and clean it up

OLS

RK Application

Your Work

Make data as `sf` and clean it up
